| Technical Data |

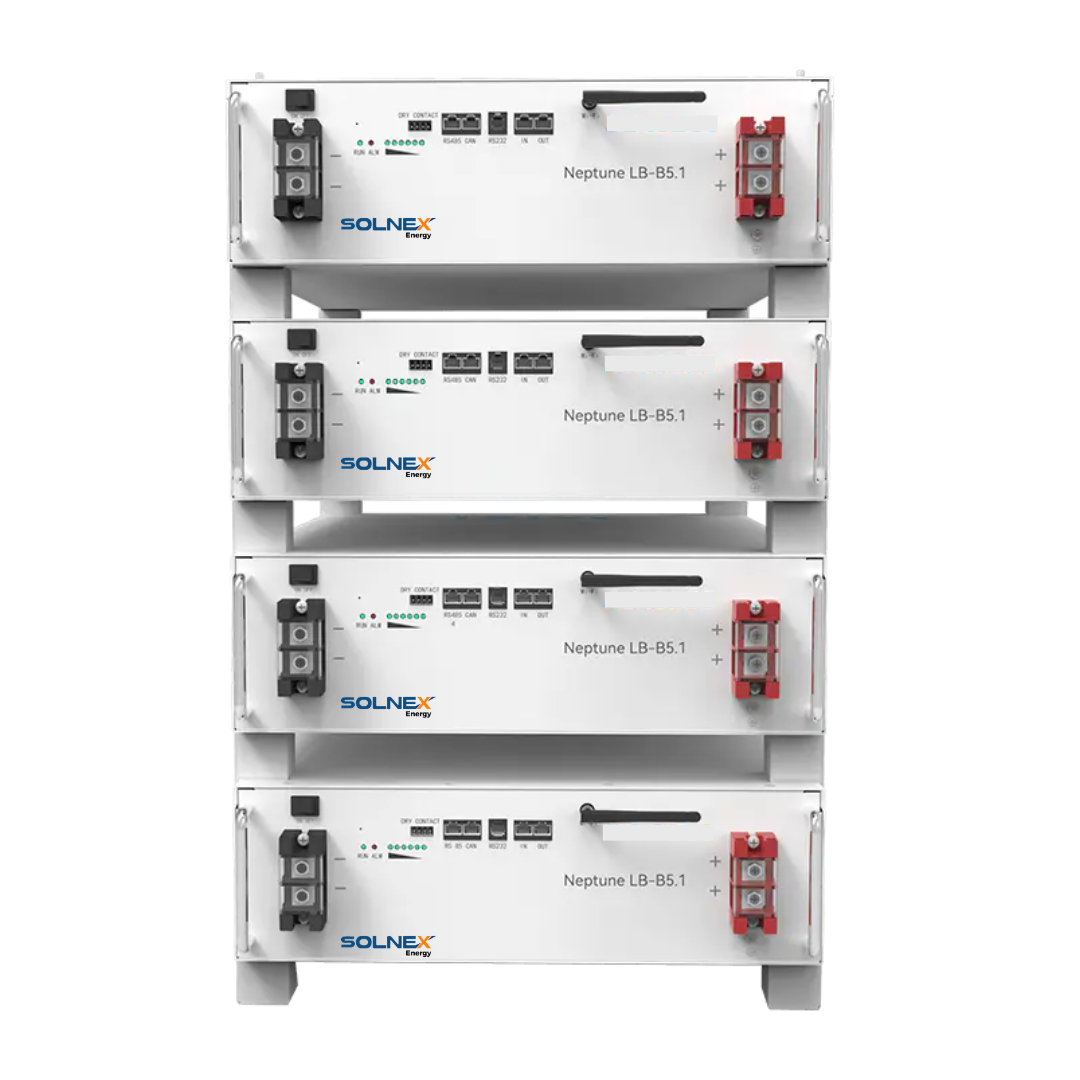

Neptune LB-B5.1 |
| Main Parameter |
| Battery Type |
LiFePO₄ |
| Capacity(Ah) |
100 |
| Scalability |
Recommend 15 pcs pack (76.8kWh) |
| Nominal Voltage(V) |
51.2 |
| Operating Voltage(V) |
43.2~57.6 |
| Rated Energy(kWh) |
5.12 |
| Usable Energy(kWh) |
4.6 |
| Charge/Discharge Current(A) |
Recommend 50 |
| Max 100 |
| Other Parameter |
| Recommend Deth of Discharge |
90% |
| Dimension(W×H×D mm) |
380×650×175 |
| Weight Approximate(kg) |
45 |
| IP Rating of Enclosure |
IP20 |
| Operating Temperature(℃) |
Charge: 0℃~55℃ |
| Discharge: -20℃~55℃ |
| Storage Temperature(℃) |
0℃~35℃ |
| Humidity |
5%~95% |
| Altitude |
≤2000m |
| Cycle life* |
≥6000 Cycles |
| Installation Location |
Wall-mounted, floor, rack |
| Communication Port |
CAN2.0,RS485,WIFI |
| Warranty Period |
5 years |
| Certification |
UN38.3 |
