| Technical Data |

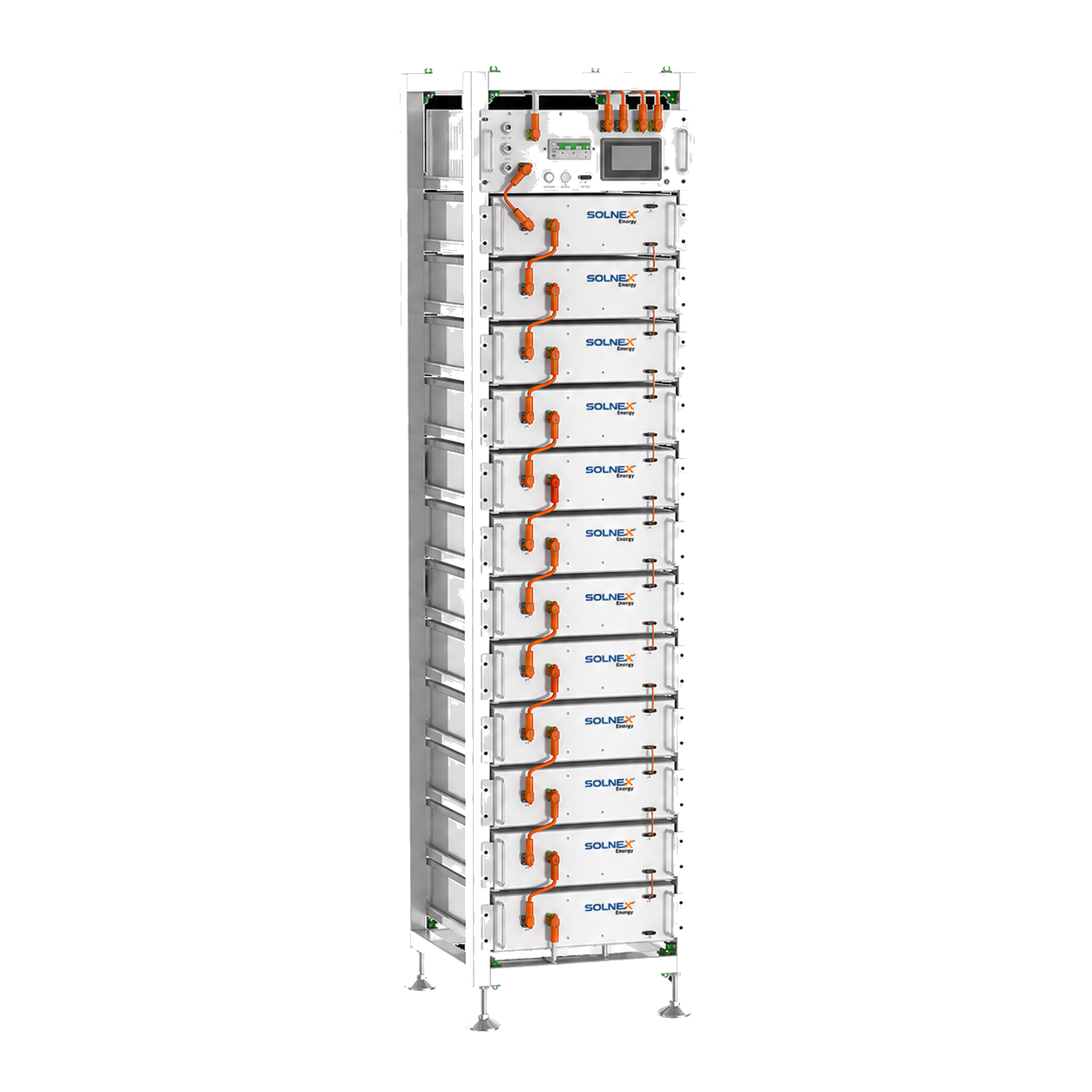

Jupiter HA-R35~60 |
| Main Parameter |
| Battery Type |
LiFePQ₄ |
| Battery Module Energy(kWh) |
5.12 |
| Battery Module Nominal Voltage(V) |
51.2 |
| Battery Module Capacity(Ah) |
100 |
| Battery System Model |
Jupiter HA-R35 |
Jupiter HA-R40 |
Jupiter HA-R45 |
Jupiter HA-R50 |
Jupiter HA-R55 |
Jupiter HA-R60 |
| Battery Module Qty In Series(Optional) |
7 |
8 |
9 |
10 |
11 |
12 |
| System Nominal Voltage(V) |
358.4 |
409.6 |
460.8 |
512 |
563.2 |
614.4 |
| System Operating Voltage(V) |
313.6~403.2 |
358.4~460.8 |
403.2~518.4 |
448~576 |
492.8~633.6 |
537.6~691.2 |
| System Energy(kWh) |
35.84 |
40.96 |
46.08 |
51.2 |
56.32 |
61.44 |
| System Usable Energy(kWh) |
32.25 |
36.86 |
41.47 |
46.08 |
50.68 |
55.29 |
| Rated DC Power(kW) |
35.84 |
40.96 |
46.08 |
51.2 |
56.32 |
61.44 |
| Charge /Discharge Current (A) |
Recommend 50 |
| Max 100 |
| Other Parameter |
|
| Operating Temperature(℃) |
Charge:0~55/Discharge:-20~55 |
| Storage Temperature(℃) |
-10~35 |
| Status Indicator |
Green: Battery is properly power on, Red: Battery System Alarm |
| Communication Port |
CAN2.0/RS485 |
| Humidity |
5%~85%RH |
| Altitude |
≤3000m |
| IP Rating of Enclosure |
IP20 |
| System Dimension (W×H×D,mm) |
550×1740×602 |
550×2170×602 |
| System Weight Approximate(kg) |
388 |
431 |
474 |
518 |
564 |
610 |
| Installation Location |
Rack-Mounted |
| Recommend Depth of Discharge |
90% |
| Cycle Life* |
≥6000 Cycles |
| Warranty Period |
5/10 years |
| Certification |
UN38.3, SDS, CE, IEC62619 |
