| Technical Data |

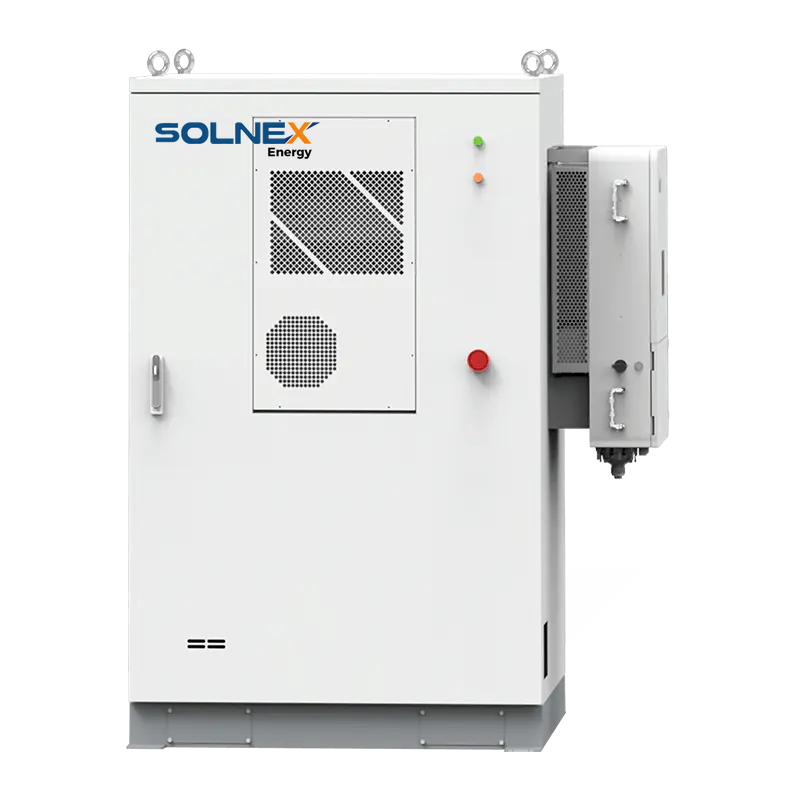

Jupiter HB-S50/100 |
Jupiter HB-S60/130 |
| System Specification |
| Nominal Output Power /UPS Power(W) |
50000 |
60000 |
| AC Output Frequency and Voltage |
50/60Hz,230V/400Vac |
| Grid Type |
3/N/PE |
| Number of Parallel |
DC: Up to 6 units AC: Up to 3 units |
| Energy Configuration(kwh) |
100.35 |
129.02 |
| Dimension(W×D×H,mm) |
1140×1880×1175 |
| Weight Appr. (kg) |
1744 |
1956 |
| AC Output Rated Current(A) |
83.4A |
100A |
| Battery Operating Voltage(V) |
313.6~403.2 |
403.2~518.4 |
| MaX.RTE |
93% |
| Battery Chemistry |
LiFePO₄ |
| IP Rating of Enclosure |
IP55 |
| Installation Method |
Floor-Mounted |
| Storage Temperature(℃) |
0~35 |
| Operating Temperature(℃) |
-30~60℃ |
| Warranty |
5 years |
| Inverter Technical Specification |
| Max.PV Input Power(W) |
80000 |
90000 |
| Max.PV Input Current(A) |
4*40A |
| Rated PV Input Voltage(Vdc) |
600 |
| Start Up DC Voltage(Vdc) |
180 |
| MPPTVoltage Range(Vdc) |
180-1000 |
| MaX.PV Short-Circuit Current(A) |
4*60A |
| Number of MPPT |
4 |
| Peak Power(off grid) |
1.5 time of rated power;10s |
| Power Factor |
0.8 leading to 0.8 lagging |
| THD |
<3% |
| Display |
LCDIAPPMeb |
| Operating Temperature Range(℃) |
-30~60℃ |
| Relative Humidity |
5~85 |
| Dimension(W×D×H,mm) |
620×900×300mm |
| Inverter Communication |
RS485/CAN/WFI/4G/LAN/Bluetooth |
| Grid Regulation |
VDE4105, EC61727/62116, VDE0126, AS4777.2, CEI0-21, EN50549-1, G98, G99, C10-11, UNE217002, NBR 16149/NBR 16150 |
| Max.Efficiency |
98.40% |
| Battery Technical Specification |
| Battery Module Nominal Voltage(V) |
51.2 |
| Battery Module Energy(kWh) |
14.33 |
| BMS Communication |
CAN2.0/RS485/4G |
| Battery Module Dimension(W×DxHmm) |
504×781×230 |
| Battery Module Weight(kg) |
106 |
| OperatingTemperature Range(℃) |
Charge:0~55/Discharge:-20~55 |
| Cycle Life |
>6000(@25℃±2℃,0.5C/0.5C,90%DOD,80%EOL) |
| Battery Module Certification |
UN38.3, SDS, CE, IEC62619 |
