Description

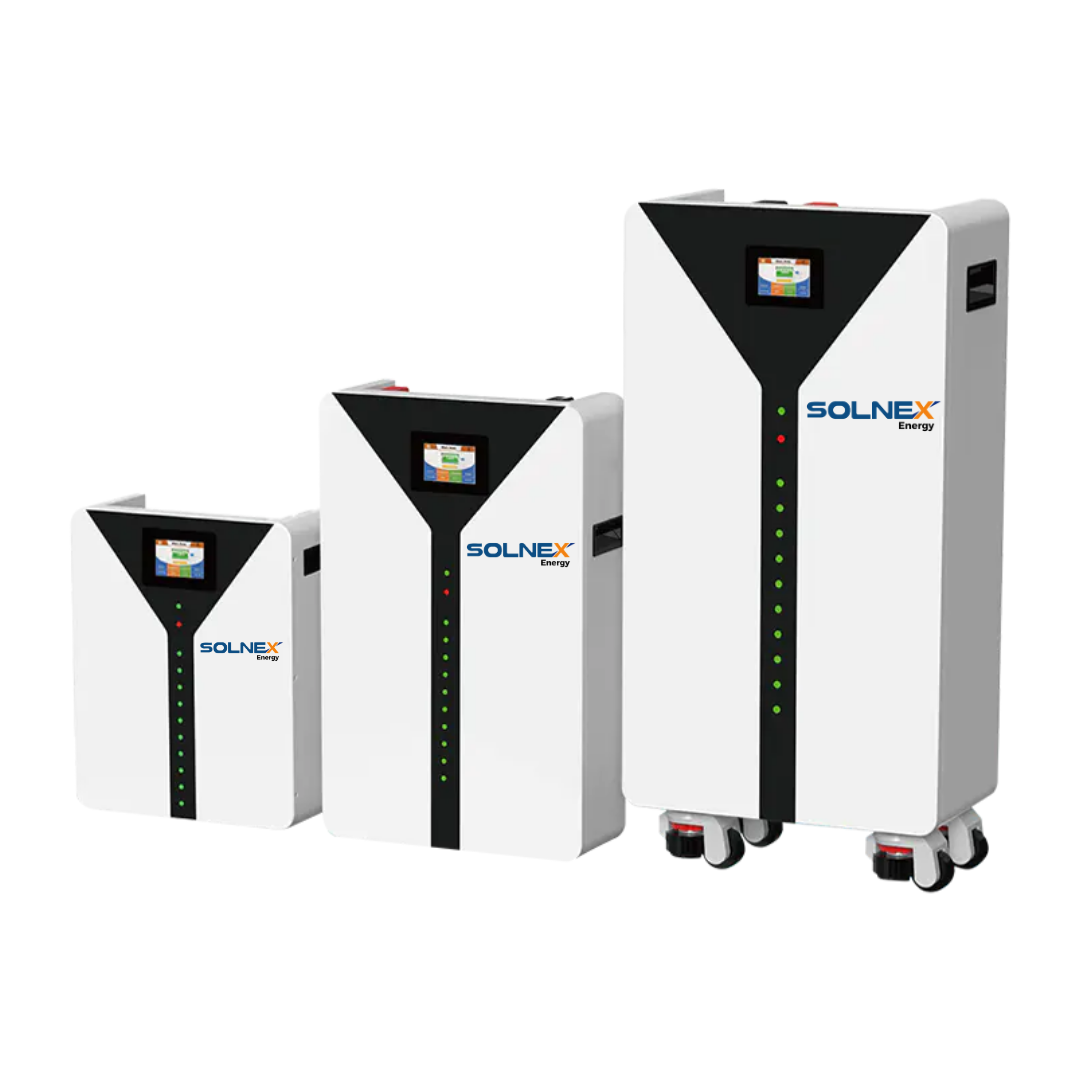

| Technical Data | Neptune LA-C2.5 | Neptune LA-C5.1 | Neptune LA-C15.0 |
| Capacity | 2.56kWh | 5.12kWh | 15.07kWh |
| Main Parameter | |||
| Battery Type | LiFePO4 | ||
| Capacity(Ah) | 100 | 100 | 314 |
| Nominal Voltage(V) | 25.6 | 51.2 | 48 |
| Operating Voltage(V) | 21.6~28.8 | 43.2~57.6 | 40.5~54 |
| Rated Energy(kWh) | 2.56 | 5.12 | 15.07 |
| Usable Energy(kWh) | 2.3 | 4.6 | 13.56 |
| Maximum Charge/Discharge Current(A) |
50/100 | 50/100 | 150/200 |
| Recommend Death of Discharge |
90% | ||
| Other Parameter | |||
| Dimension(W×H×D,mm) | 340*420*145 | 380*600*145 | 430*864*240 |
| Weight Approximate(kg) | 25 | 45 | 105 |
| Display | Color touch display screen | ||
| IP Rating of Enclosure | IP20 | ||
| Operating Temperature(℃) | Charge: 0°℃~55℃ | ||
| Discharge:-20°℃~55℃ | |||
| Storage Temperature(°℃) | -10℃~40℃ | ||
| Humidity | 5%~95% | ||
| Altitude | ≤2000m | ||
| Cycle life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) | ||
| Installation Location | Wall-Mounted | Wall-Mounted | Floor-Mounted |
| Communication Port | CAN2.0,RS485,RS232,WIFI | ||
| Warranty Period | 5 years | ||
| Certification | UN38.3 | ||
